Place of Origin:
China (Mainland)
Hàng hiệu:
Kacise
Chứng nhận:
certificate of explosion-proof, CE
Model Number:
K-JSJ-001

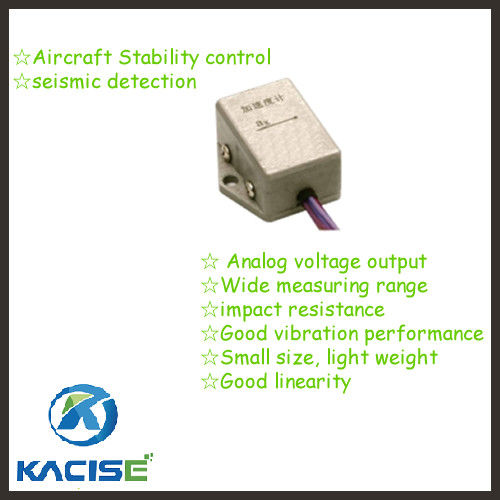

☆ Analog voltage output
☆Wide measuring range
☆impact resistance,Good vibration performance
☆Small size, light weight,
☆Good linearity
☆Aircraft Stability control
☆seismic detection
| Type | K-JSJ-001 |
| Electric character | |
| Input voltage | 5±0.25 VDC |
| Input current | ≤2 mA |
| Output Mode | 0.5~4.5V |
| Performance index | |
| Axial direction | X |
| Range | ±1 g |
| Bandwidth | ≥50 Hz |
|
Sensitivity |
1000±30 mV / g |
| Resolution (°/s) | ≤ 0.001 g |
| Nonlinear (%FS) | ≤ 0.5% Fs |
| Bias | 2.5±0.1 V |
| Start-up time (ms) | ≤1 s |
| Environmental characteristics | |
| Temperature (°C) | -40℃~+70℃ |
| Storage Temperature | -40℃~+125℃ |
| Resistant to shock | 4000g |
| Physical Characteristics | |
| Weight (g) | 40g |
| Dimensions | 19.5×18.8×8.4 mm |
Note: Range can choose ±1～±100g
Bandwidth can choose ≤400 Hz
Dimension
