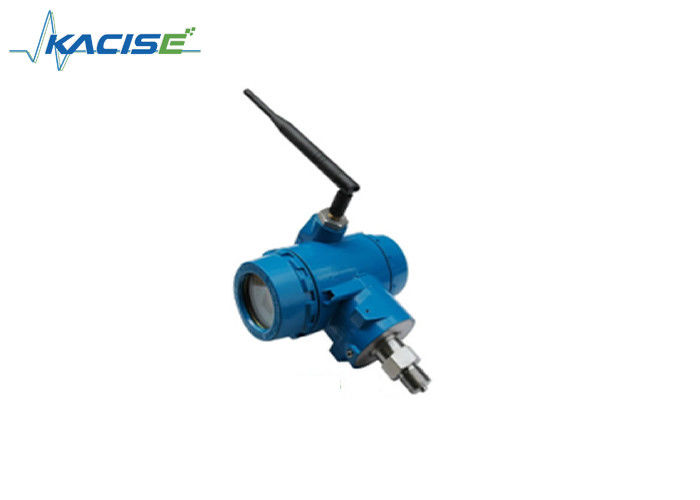

Low Consumption Wireless Pressure Transducer or Wireless Pressure Switch High Precision accuracy ±0.5%

Low Consumption Wireless Pressure Transducer or Wireless Pressure Switch High Precision accuracy ±0.5%

wireless pressure transducer

wireless pressure sensor

Place of Origin:

China

Hàng hiệu:

Kacise

Chứng nhận:

CE

Model Number:

GX-iPS600-8B

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Accuracy:
±0.5% of F.S
Pressure range:
0~0.2MPa......60MPa; 2bar…600bar 29psi…8700psi; 20000MmH20…6118000mmH2O 1.97atm…592stm
Display panel:
No display
Over pressure safe:
1.5 times span of nominal value
Media:
compatible with Stainless Steel 1Cr18Ni9Ti
Power supply:
3.6V/1bettery(1 pcs)
Làm nổi bật:

wireless pressure transducer

,

wireless pressure sensor

Điều khoản thanh toán và vận chuyển
Minimum Order Quantity
1 piece
Giá bán
có thể đàm phán
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000 pieces per week
Mô tả sản phẩm

GX-iPS608-8B  Metallurgical and Chemical Industry Pipeline Pressure Monitoring  Self-organizing Mesh network Battery Power Low Consumption Wireless Pressure Transmitter for Wild or No Power Situation



Application



  • Special for pipeline pressure monitoring
  • in wild field or non power distribution
  • Used in metallurgical industry and chemical industry



Feature



  • Accuracy ±0.5%F.S
  • Diffused semiconductor core body
  • Zig bee wireless communication
  • Self-organizing Mesh network
  • Use 1# Battery supply Power
  • Led display



Introduction



GX-iPS600-8A/8B series of low-power wireless pressure transmitter is a battery-powered LCD display, real-time data precision smart pressure measurement instruments; embedded Zigbee wireless communication module using the Zigbee protocol standard 2.4GHzRF transceiver, CSMA / CA anti-collision mechanism effectively avoid channel blocking send data at the same time and data loss.

It uses the 1# battery dry cell to supply the power, low-power design, the service life can up to six months or more.



Electronic interface and signals definition



Low Consumption Wireless Pressure Transducer or  Wireless Pressure Switch High Precision accuracy ±0.5% 0



Parameter



Spec. Value
Type GXiPS600-8A GXiPS600-8B
Pressure range

0~0.2MPa......60MPa; 2bar…600bar

29psi…8700psi; 20000MmH20…6118000mmH2O

1.97atm…592stm

Over pressure safe 1.5 times span of nominal value
Secondary Containment 3 times span of nominal value
Accuracy ±0.5% of F.S
Long term stability 0.25%F.S/Year
Operate temperature -10°C~60°C
Compensated temperature range -10°C~60°C
Media compatible with Stainless Steel 1Cr18Ni9Ti
Data transmission channel Wireless ZIGBEE
Power supply 3.6V/1bettery(1 pcs)
Minimum isolation between case and terminations 100M Ω@50V
Surge immunity 500V@60 second
Shock and vibration 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Display panel No display 0.001~999999
Pressure Port: M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure type Gauge, compound Gauge React time: 10ms
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2

Company Information



Low Consumption Wireless Pressure Transducer or  Wireless Pressure Switch High Precision accuracy ±0.5% 1

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
